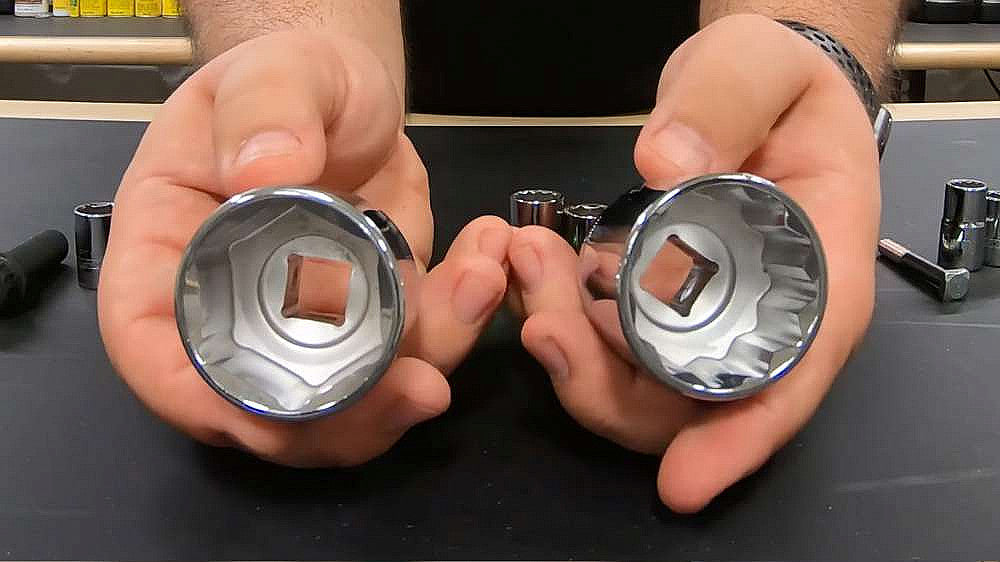

🔩 6‑Point vs. 12‑Point Sockets: What's the Difference and Which Should You Use?
Walk into any workshop, and you'll see two distinct types of sockets scattered across the bench: the ones with six internal points and the ones with twelve. At first glance, they seem interchangeable—and in many cases, they are. But reach for the wrong one when you're wrestling with a seized suspension bolt on a rusty old Hilux, and you'll quickly learn that not all sockets are created equal. You might round off the fastener, split the socket, or end up with a repair job that just got a whole lot more expensive.
At Torqpoint Tools, we stock both 6‑point and 12‑point sockets across all drive sizes—1/4", 3/8", 1/2", and 3/4"—because the right tool for the job depends entirely on what you're doing. This guide will walk you through the critical differences between 6‑point and 12‑point sockets, explain the physics behind why one grips better than the other, and give you a practical, no‑nonsense guide to choosing the right socket for every situation.
🧐 The Core Difference: Contact Area and Torque Distribution
The difference between a 6‑point and a 12‑point socket isn't just about the number of points—it's about how the socket engages the fastener and where the force is applied.
- 🔹 6‑Point Sockets (Single Hex): A 6‑point socket grips the flat sides of a hex fastener, providing maximum surface contact. This design directs the turning force across the entire face of the fastener, rather than concentrating it on the corners. As a result, 6‑point sockets are significantly less likely to slip or round off a stubborn bolt, especially when dealing with high torque, rusted hardware, or fasteners made from softer materials. Professional sources like Snap‑on confirm that a 6‑point socket is "generally chosen to get a more secure fit on the fastener with less chance of rounding the fastener"[reference:0].
- 🔸 12‑Point Sockets (Double Hex or Bi‑Hex): A 12‑point socket engages the corners of a hex fastener. While it can still fit a standard 6‑point bolt head, it makes contact on a much smaller surface area—typically only at the very tips of the fastener's corners. This reduced contact area means the turning force is concentrated on a smaller portion of the fastener, which can lead to rounding, especially on seized or soft fasteners[reference:1]. However, the 12‑point design offers a significant advantage in terms of accessibility: because the socket has a point every 30 degrees (compared to every 60 degrees on a 6‑point), it's much easier to engage the socket onto a fastener in tight, awkward spaces where you can't swing the ratchet handle very far[reference:2].
Think of it this way: a 6‑point socket is like gripping a nut with a full, open hand—secure and stable. A 12‑point socket is more like gripping it with just your fingertips—you can get it on quickly, but it's more likely to slip if you really lean into it.
⚙️ Wall Thickness and Strength
Another critical difference between 6‑point and 12‑point sockets is the wall thickness. Because a 6‑point socket doesn't need to accommodate the extra cutouts for twelve points, its walls can be significantly thicker. This additional material makes 6‑point sockets inherently stronger and more resistant to cracking or splitting under high torque, which is why virtually all impact sockets are manufactured as 6‑point[reference:3]. Conversely, 12‑point sockets have thinner walls to create the additional internal angles, which makes them slightly more prone to failure under extreme loads[reference:4].
🔧 When to Use 6‑Point Sockets
6‑point sockets are the workhorses of any serious toolbox. They're your go‑to choice for the vast majority of tasks, especially when reliability and fastener preservation are paramount.
- 🛞 High‑Torque Applications: Any job that requires serious force—removing wheel lug nuts, suspension components, brake caliper bracket bolts, or cylinder head bolts—demands a 6‑point socket. The increased contact area and thicker walls mean you can lean on the breaker bar with confidence[reference:5].
- 🧰 Rusted or Seized Fasteners: If you're working on an older Australian vehicle or machinery that's seen its share of weather, reach for a 6‑point socket. It's far less likely to round off a corroded bolt head, saving you from having to drill out or extract a damaged fastener[reference:6].
- 🔩 Impact Wrenches and Power Tools: As mentioned above, the overwhelming majority of impact sockets are 6‑point. The hammering action of an impact wrench concentrates immense force on the fastener, and a 12‑point socket simply can't handle that level of abuse without risking damage to the fastener or the tool[reference:7].
- 🧼 Soft Metals: Fasteners made from softer materials like brass, copper, or low‑grade aluminium are particularly susceptible to rounding. A 6‑point socket's broad contact area protects these delicate fasteners from damage.
🔧 When to Use 12‑Point Sockets
While 6‑point sockets are the safer choice for heavy‑duty work, 12‑point sockets have their own distinct advantages that make them indispensable in certain situations.
- 🚗 Tight Access and Awkward Angles: This is the primary reason professionals keep 12‑point sockets in their toolbox. In a cramped engine bay—think working on a modern Commodore or a tightly packaged Japanese 4WD—you often can't swing a ratchet handle very far. A 12‑point socket gives you twice as many engagement angles (every 30° instead of every 60°), allowing you to get the socket onto the fastener and make progress even when space is severely limited[reference:8].
- ⚡ Speed and Efficiency: When you're doing repetitive work—like assembling clean, new components on a bench—a 12‑point socket drops onto the fastener faster because you don't have to align it as precisely. This small time saving adds up over the course of a big job[reference:9].
- 🔩 12‑Point Fasteners: Some specialised hardware—particularly on aircraft, high‑performance engines, and certain European vehicles—uses 12‑point bolt heads. In these cases, a 12‑point socket isn't optional; it's required. You simply can't fit a 6‑point socket onto a 12‑point fastener[reference:10].
- 🛠️ Lighter Repairs: For general maintenance tasks on clean, well‑maintained vehicles—changing a battery, removing interior trim, or working on non‑critical components—a 12‑point socket is perfectly adequate and often more convenient.
📊 6‑Point vs. 12‑Point Sockets: At a Glance
| Feature | 6‑Point Socket | 12‑Point Socket |
|---|---|---|
| Contact Area | Grips the flat sides of the fastener; maximum surface contact | Engages the corners of the fastener; reduced contact area |
| Rounding Risk | Low; ideal for high‑torque and seized fasteners | Higher; can round off stubborn or soft fasteners |
| Wall Thickness | Thicker; stronger and more resistant to splitting | Thinner; slightly more prone to failure under extreme loads |
| Engagement Angle | Every 60° | Every 30° |
| Best Applications | High‑torque, rusted fasteners, impact wrenches, soft metals | Tight spaces, 12‑point fasteners, light repairs, speed |
| Impact Tool Compatibility | ✅ Recommended (almost all impact sockets are 6‑point) | ❌ Not recommended for impact use |
🧠 Practical Guidance: What Should You Buy?
If you're building your first serious toolkit or looking to upgrade from a cheap, incomplete set, here's a practical, no‑nonsense approach to building a socket collection that will serve you for years.
🏁 For the Home DIYer and Weekend Warrior
Start with a comprehensive 6‑point socket set in 3/8" drive covering 8mm to 19mm. This will handle 90% of the tasks you'll encounter on Australian vehicles—from oil changes and brake jobs to general under‑bonnet maintenance. Add a 1/2" drive 6‑point set (or individual sockets) for wheel nuts and suspension work. For the occasional tight‑access job, a small set of 12‑point sockets in 1/4" or 3/8" drive is a worthwhile addition, but it shouldn't be your primary set.
🔧 For the Professional Tradie
You already know the answer: you need both. A full set of 6‑point impact sockets in 1/2" and 3/8" drive is non‑negotiable for heavy‑duty work. But you'll also reach for 12‑point chrome sockets constantly—when you're working in a cramped engine bay, dealing with 12‑point fasteners on European cars, or just need to get a socket onto a bolt in a blind spot where you can barely see it. Professionals carry both because both have earned their place[reference:11].
⚠️ A Critical Safety Note: Chrome vs. Impact Sockets
This guide focuses on 6‑point vs. 12‑point geometry, but it's worth reiterating a crucial safety rule: never use chrome sockets with an impact wrench. Chrome sockets (typically Cr‑V steel) are harder and more brittle; they can shatter under the hammering force of an impact tool, sending sharp fragments flying. Impact sockets (Cr‑Mo steel) are softer, more ductile, and designed to absorb shock. If you're using power tools, always use impact‑rated sockets—and almost without exception, those will be 6‑point.
🏁 The Final Word
The 6‑point vs. 12‑point debate isn't about which is "better"—it's about which is right for the task at hand. A 6‑point socket is your reliable, heavy‑duty workhorse, providing maximum grip and strength when the stakes are high. A 12‑point socket is your agile, nimble specialist, getting you into tight spaces and onto fasteners that would otherwise be inaccessible. The smart tradie—and the well‑equipped DIYer—keeps both in their arsenal and knows exactly when to reach for each one.
